Knuckle Boom Crane
Knuckle Boom Crane

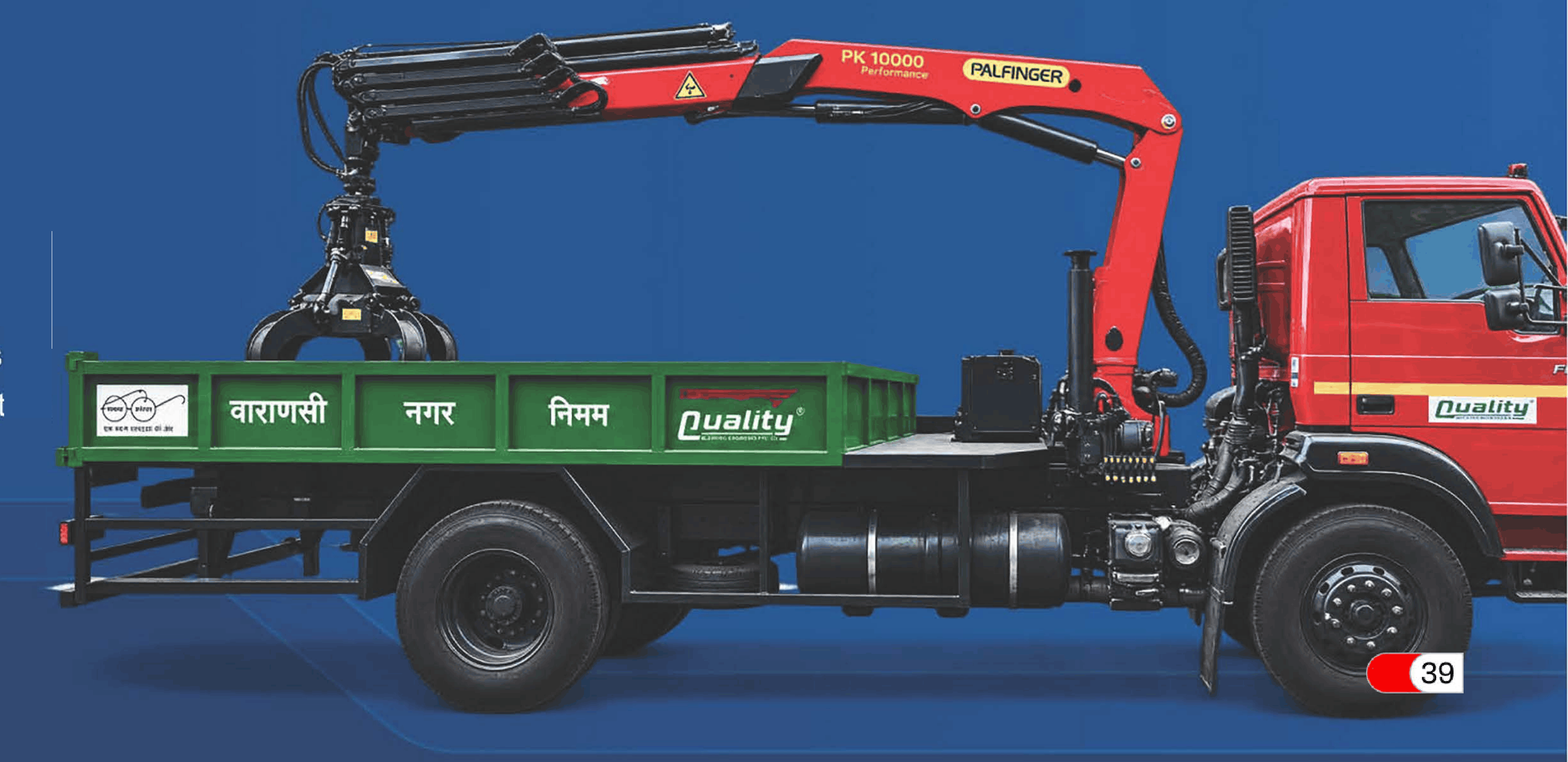

Our Knuckle Boom Crane is a truck-mounted hydraulic lifting and material-handling system equipped with an articulated and foldable boom. Its compact configuration and extended hydraulic reach enable lifting, loading, unloading and handling of waste, containers and other materials at different working radii. The equipment can be integrated with suitable attachments, such as a clamshell/grab bucket, depending on the intended application.
Advantages
- Compact & Foldable Design: Articulated boom folds into a compact position when not in operation.
- Extended Working Reach: Multiple hydraulic boom extensions facilitate handling of material at varying distances.
- Efficient Material Handling: Enables mechanised lifting, loading and unloading of waste and other materials.
- Flexible Operation: Hydraulic articulation and slewing provide greater operational flexibility at the work site.
- Reduced Manual Handling: Facilitates handling of heavy and bulky material with reduced dependence on manual intervention
- Vehicle-Mounted Mobility: Truck-mounted configuration enables deployment across different locations
- Attachment Compatibility: Can be integrated with suitable hooks, clamshell buckets or other attachments depending upon the application
Applications
- Garbage container and large waste-bin handling
- Bulk and bulky waste collection
- Construction and demolition (C&D) waste handling
- Municipal solid waste handling
- Desilting and sludge handling with suitable attachments
- Industrial scrap and waste handling
- Loading and unloading of materials
- Heavy material and equipment shifting
TECHNICAL DATA
| Crane Type | Hydraulic Knuckle Boom / Articulated Crane |
|---|---|
| Mounting | Truck Mounted |
| Lifting Moment | 9.5 TM Minimum |
| Hydraulic Extension Booms | Minimum 4 |
| Maximum Hydraulic Outreach | 12.2 metres |
| Slewing Range | 400° minimum |
